Gen5 Lite RH

BIG THINGS COME IN SMALL PACKAGES

The Temprecord Gen5 Lite RH Temperature & Humidity Data Logger provides reliable temperature and relative humidity monitoring in a compact, reusable device. With an operating range of -30°C to +50°C and 5% to 90% RH, it combines simple operation, USB-C connectivity and Temprecord Cloud access for convenient environmental monitoring.

Thank you for your interest. We'll be in touch shortly.
There was an issue processing your request. Please try again.
Key features of the Gen5 Lite RH Temperature Data Logger

No reader needed
• Start, stop and access reports without requiring a dedicated reader interface.
Cloud-based software
• Access your temperature and humidity data anytime, anywhere through Temprecord Cloud.
Direct USB-C connection
• Fast, simple and universal connectivity for quick data access.
Accurate temperature & humidity monitoring
• Monitor from -30°C to +50°C and 5% to 90% RH, with temperature accuracy of ±0.3°C across the specified accuracy range.
Clear LCD display
• Stores approximately 16,384 samples, with programmable sampling intervals from 2 seconds to 12 hours.
Direct USB-C connection
• Quickly view logger status, settings, temperature, humidity and logged values directly on the device.
Splash-proof construction
• Fully sealed, FDA-approved food-grade casing designed to withstand incidental splashes during normal use.
Reusable design
• Built for repeated use, providing a practical solution for ongoing temperature and humidity monitoring.

Advanced features for versatility

On-Logger control
• Configure settings, start and stop logging, adjust sampling intervals and review logged values directly from the logger.
Programmable start delay
• Set delays from 0 seconds to 12 hours to suit your monitoring requirements.
Flexible recording duration
•  Capture data from as little as 8.8 hours up to 12 months.
Out-of-limits alerts
• Visual indicators notify users when temperature limits have been exceeded.
Reusable Design
• Designed for repeated use, helping reduce waste and lower operating costs.
Custom branding available
• Optional customisation available for large-scale deployments.

Seamless integration with simple tools

Temprecord Cloud Integration
• Manage devices, access reports and monitor temperature and humidity data through a secure cloud platform.
Direct USB-C Connectivity
• Connect quickly without specialised hardware.
No software complexity
• Simplified setup and operation for fast deployment across teams and locations.
Accessible data anywhere
• View and manage temperature records from wherever your business operates.
Easy deployment
• Compact design and intuitive operation reduce training requirements.

Versatile applications

Ideal for:
• Cold chain logistics and transportation
• Food production, storage and distribution
• Fresh produce exports
• Pharmaceutical and healthcare shipments
• Warehousing and distribution centres
• Laboratory and research environments
• Refrigerated transport
• Temperature and humidity sensitive industrial products
• Import/export and international freight monitoring

Warranty & safety information

12-Month Warranty on the data logger and battery from the date of     purchase.
Splash proof for protection against dust, water and harsh operating environments.
FDA-Approved food-grade casing for use in food and temperature-sensitive applications.
Fully sealed construction helps prevent moisture ingress and supports long-term reliability.
• Complies with international standards including FCC, EN, AS/NZS and ETSI requirements.
• Warranty is void if traces of water are found inside the logger casing.

Ready for any challenge

Small in size. Big on performance. The Gen5 Lite RH combines reliable temperature and humidity monitoring, reusable operation and flexible data access in one compact solution — ready to provide clear insights wherever monitoring takes you.

Features

Gen5 Lite RH Data Logger

Case Protection Rating

Waterproof to IP67 or NEMA 6 rated.
Fully sealed plastic case is durable in extreme conditions.
FDA approved food grade casing.

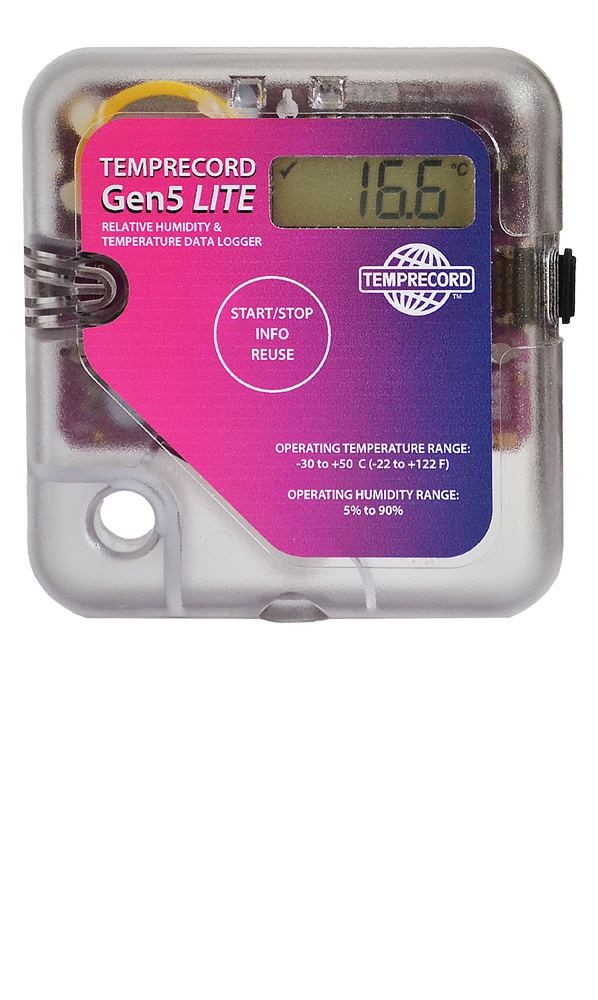

LCD Display Screen

By simply pressing the button to view
data, the LCD screen will display additional
information including: recorded data
being within or outside of specific upper and lower temperature limits, time outside of limits, minimum and maximum Temperatures recorded ...plus more!

Push Button

Integrated Push Button feature allows
User to ‘Start’ or ‘Stop’ data logger
in the field. Also allows placing of
markers. LCD screen will display
important information when button
is pressed sequentially to scroll
through various screens.

Retaining Hole

Fully moulded and ultrasonically
welded retaining hole for easy
securing of the data logger within
different environments.

Specifications

Technical Specifications
Detail
Model
Gen5 Lite RH Multi Use Temperature and Humidity Data Logger
Data logging interval / sample period
Programmable between 2 second and 12 hours
Start Delay
Programmable between 0 seconds and 12 hours
Memory storage capacity
16K Non-volatile (8K temperature & 8K humidity)
Start and Stop
Logger Button or Temprecord Cloud software
Recording Duration
8.8 hrs up to 12 months
Operating temperature range of case
-30 ˚C to +50 ˚C or -22 ˚F to +122˚F
Temperature Accuracy
±0.3 ˚C / +/-1 ˚F over the range -30 ˚C to +50 ˚C or -22 ˚F to +122 ˚F
Humidity Operating Range
5% to 90% RH
Relative Humidity Accuracy
±3% from 20% RH to 80% RH, else ±5%
Display Resolution
0.1 ˚C or 0.1 ˚F
Compliance
FCC Part 15 A and B
EN 55035:2017 + A11:2020
AS/NZS CISPR-32: 2015+ Amendment A1:2020
ETSI EN 301489-3 V2.1.1 (2019-03)
Limits Indicator
The ✔ flashes if values are all within limits
The ✘ flashes if one or more limits have been exceeded
Battery Type
Manganese Dioxide Lithium (3.0V)
Logger Dimensions
L 77.5 mm x W 73.5mm x 14mm
Weight
55g
Case Colour
Clear base with a pink to blue gradient label. Special customisation available.
Case Protection
Splash proof. Fully sealed FDA approved food grade casing
Warranty Period
12 months on data logger and battery from date of purchase. Warranty void if tracesof water found within logger case
